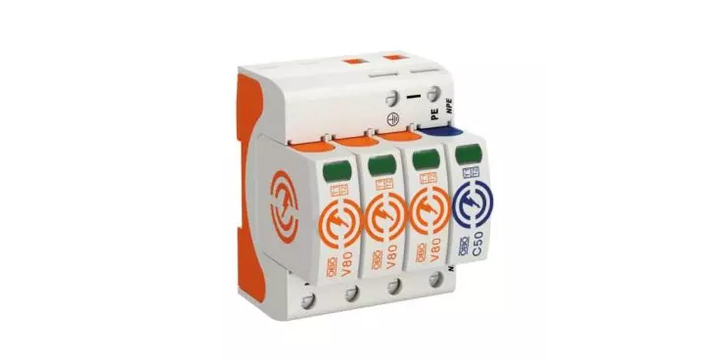

Obo Bettermann OB.5093810 Combicontroller V80 3 Pole + Npe 280 V
Obo Bettermann OB.5093810 Combicontroller V80 3 Pole + Npe 280 V
Merek:
Obo
Model:
OB.5093810
Deskripsi Produk

Obo Bettermann OB.5093810 Combicontroller V80 3 Pole + Npe 280 V

  • For lightning current equipotential bonding to VDE 0185-305 (IEC 62305)

  • Lightning current arresting capacity of 12.5 kA (10/350) per pole and up to 50 kA (10/350) total

  • Impulse current arresting capacity up to 80 kA (8/20)

  • Modular, plug-in arrester with cut-off unit and visual status display

  • Locking mechanism with vibration protection and voltage keying

  • Plastic to UL 94 V-0

  • Remote signalling (FS) variants have potential-free changeover contact

  • Application: Lightning current equipotential bonding for buildings of class III and IV

  • Complete = cover and base


Specifications:


  • Types: V80-3+NPE-280

  • Number of Poles: 4

  • Poles description: 3+N/PE

  • Maximum Continuous Voltage AC: 280 V
Rp 7.264.506
(exc. PPN)
Rp 8.063.602
(inc. PPN)
UnitDiskonHarga Satuan
1-Rp 7.264.506
Kuantitas:
EA
Lead time diperlukan 30 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
