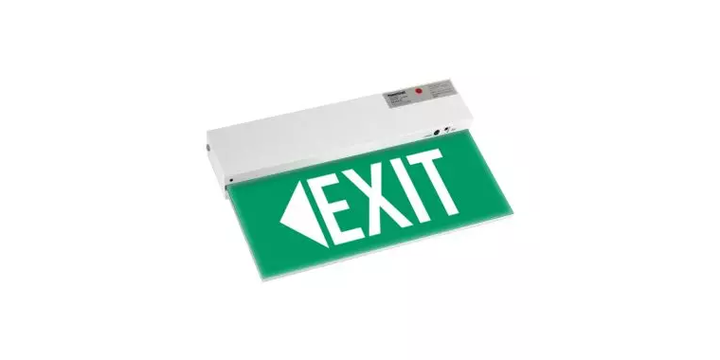

Powercraft EX-LED-M-DL Emergency Exit Sign With Direction to Left (double Sided Slim Led)
Product Description
Slim Frameless Exit Sign With Numerous Installation Options
- Ultra bright white LEDs meeting ISO safety colour requirements
- Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements
- Extra low power consumption
- High Quality, Long Life SMD LED module
- Series connection of LEDs ensures maximum LED life span and uniform light distribution
- Low battery voltage cut-off with latch function, to eliminate battery over discharge
- Add-on plate for recess mounting
Specifications
- Range: Slimline Led
- Product/Component Type: Exit Luminaire Range
- Mode of Operation: Maintained
- Lamp: 1.2W White LED module with burning life span > 50,000 hours
- Main Supply: 220-240 Volts, 50-60Hz
- Rated Duration: 3 Hours
- Power Consumption: 3W (Total standby power inclusive of LED converter)
- Battery Charger: Regulated variable rate
- Battery Type: High Temperature Nickel Cadmium
- Charge Monitor: LED
- Test Facility: Micro Switch
- Casing Construction: Electro-galvanised steel, epoxy powder coating
- Standards / Compliance: SS IEC 60598-2-22, SS 563
- Safety Features: Low battery voltage cut-off
- Mounting: Surface mount (Recessed mount option available)
- Diffuser: Acrylic plate (fire retardant)
