Merek: | SCHNEIDER ELECTRIC |
Model: | A9S65140 |

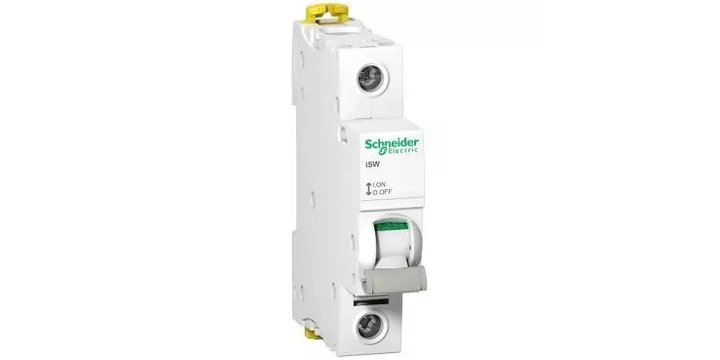

This Acti 9 iSW is a modular and reliable switch disconnector.
it is a 1P, rated current is 40A, and operating voltage is 240VAC.
Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles.
The operating temperature is -25°C to +60°C.
The storage temperature is -40°C to +85°C.
The degree of protection is IP20 and IP40 in an enclosure.
It is DIN rail mountable.
The width in 9mm pitches is 2.
The dimensions are (W) 18mm x (H) 85mm x (D) 73mm.
This switch disconnector is used for control and isolation.
This product is compliant with EN/IEC 60947-3.
Spesifikasi
Unit | Diskon | Harga Satuan |
---|---|---|
1 | - | Rp 358.391 |
