Schneider Electric A9V44463 4P Acti 9 Vigi iC60
Deskripsi Produk

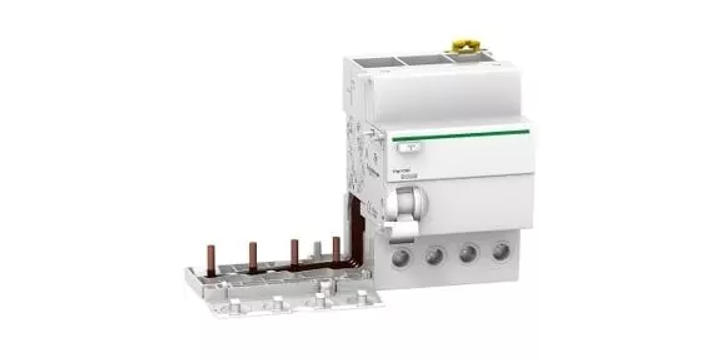

Schneider Electric A9V44463 4P Acti 9 Vigi iC60

This Acti9 Vigi iC60 is a modular add-on residual current devices.

It is a 4P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1.

The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology.

This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.

A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face.

It can be combined with iC60 or Acti 9 Reflex iC60, to provide protection of persons and protection of installations.

This product is compliant with EN 61009-1 and IEC 61009-1 standard.

The Ue rated operational voltage is 400VAC.

The Ui rated insulation voltage is 500VAC.

The Uimp rated impulse withstand voltage is 6kV.

The pollution degree is 3.

It can be mounted on DIN rail.

The width in 9mm pitches is 7.

The dimensions are (W) 135mm x (H) 91mm x (D) 73.5mm.

The weight is 0.245kg.

The degree of protection is IP20 and IP40 in an enclosure.

The operating temperature -5°C to +60°C.

The storage temperature is -40°C to +85°C.

Spesifikasi

  • Range Modul Vigi
  • Product/Component Type Pengaman Arus Bocor
  • Earth-leakage Sensitivity 300 mA
Rp 3.585.661
(exc. PPN)
Rp 3.980.084
(inc. PPN)
UnitDiskonHarga Satuan
1-Rp 3.585.661
Kuantitas:
EA
Lead time diperlukan 30 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
