| Merek: | SCHNEIDER ELECTRIC |
| Model: | DOMD01610 |

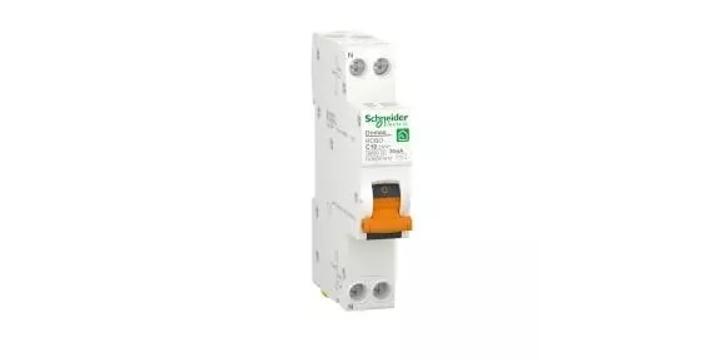

Schneider Electric DOMD01610 Domae Rcbo, 1P + N, 10 A, C Curve, 30 Ma, Type Ac, 6000 A
This Domae product is a residual current breaker with overcurrent protection (RCBO).
It is a 1P+N residual current device, 10A rated current and C tripping curve.
The earth leakage protection class is AC type with a sensitivity of 30mA.
The earth-leakage protection time delay is instantaneous.
The Icn rated short circuit breaking capacity is up to 6000A.
This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.
This product is compliant with EN 61009-1 standard.
It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
The Ue operational voltage is 230VAC.
The Ui rated insulation voltage is 400VAC.
The frequency is 50Hz.
It is DIN rail mountable.
The width in 9mm pitches is 2.
The product color is white (RAL9003).
The dimensions are (W) 18mm x (H) 93mm x (D) 70mm.
The weight is 136g.
It has an IP20 degree of protection.
It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard.
The operating temperature is from -25°C to 55°C.
The storage temperature is from -30°C to 70°C.
Spesifikasi
- Range RCBO Slim
- Product/Component Type Miniature Circuit Breaker
- Breaking Capacity 6000 A
- Poles description 1P + N
- Earth-leakage Sensitivity 30 mA
- [In] rated current 10 A
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 570.512 |
