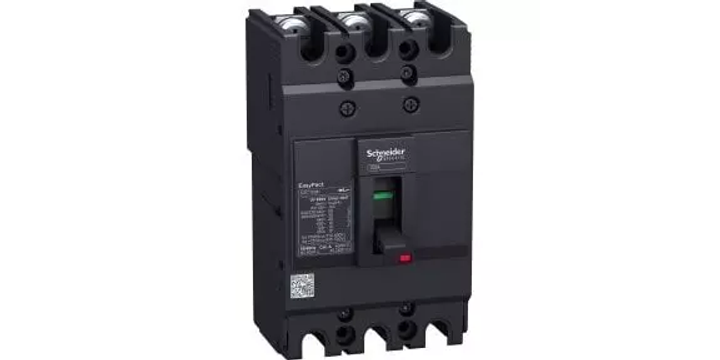

Schneider Electric EZC100H3075 Tmd Mccb Easypact Ezc 100H
Schneider Electric EZC100H3075 Tmd Mccb Easypact Ezc 100H
| Merek: | SCHNEIDER ELECTRIC |
| Model: | EZC100H3075 |
Deskripsi Produk
Schneider Electric EZC100H3075 Tmd Mccb Easypact Ezc 100H
EasyPact EZC100H is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations.
It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 30kA rms at 415VAC 50/60Hz.
The operational voltage is 550VAC 50/60Hz or 250VDC.
The rating of the thermal-magnetic trip unit is 75A.
The trip unit provides fixed overload and instantaneous protections.
This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories.
Easypact EZC100H is compliant with international standards (IEC 60947, UL 508) and marine certifications.
Spesifikasi
- Range Easypact EZC
- Product/Component Type MCCB
- [In] rated current 75 A at 40 °C
- Poles description 3P
- [Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2
- Trip unit name TM-D
- Device short name 100H
Rp 1.827.504
(exc. PPN)
Rp 2.028.529
(inc. PPN)
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 1.827.504 |
Kuantitas:
EA
Lead time diperlukan 30 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
