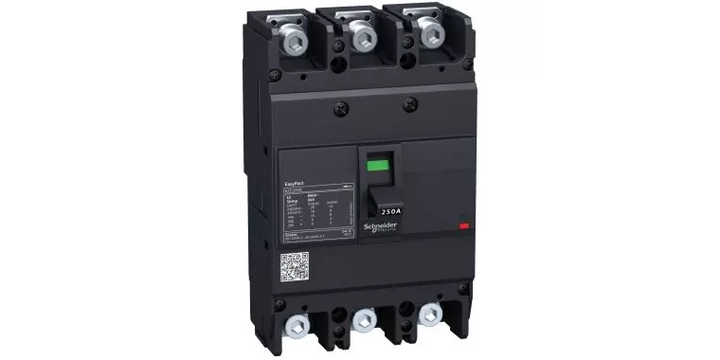

Schneider Electric EZC250F3200 Tmd Mccb Easypact Ezc 250F

EasyPact EZC250F is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations.

It is used for standard applications in industries and buildings, offering good performance at competitive price The breaking capacity (Icu) is 18kA rms at 415VAC 50/60Hz.

The operational voltage is 550VAC 50/60Hz or 250VDC.

The rating of the thermal-magnetic trip unit is 200A.

The trip unit provides fixed overload and instantaneous protections.

This 3 poles version (105mm x 165mm x 60mm) comes with a variety of optional functions and accessories.

Easypact EZC250F is compliant with international standards (IEC 60947, UL 508) and marine certifications.

Spesifikasi

• Range Easypact EZC
• Product/Component Type MCCB
• [In] rated current 200 A at 40 °C
• Poles description 3P
• [Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2
• Trip unit name TM-D
• Device short name 250F
