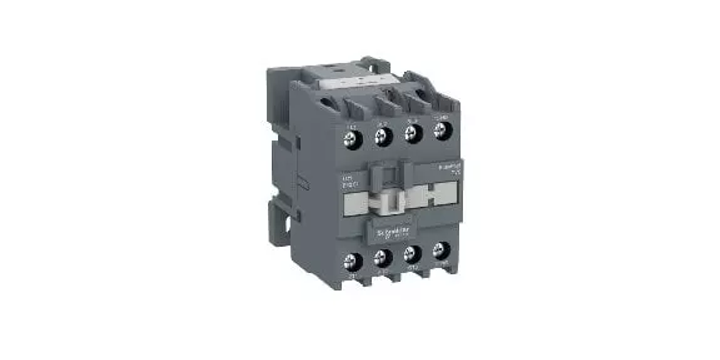

Schneider Electric LC1E3201M7 3P, 1NC, 32A, 220V, Ac Coil, 3NO, AC-3 -<=440V Kontaktor Tvs
Schneider Electric LC1E3201M7 3P, 1NC, 32A, 220V, Ac Coil, 3NO, AC-3 -<=440V Kontaktor Tvs
| Merek: | SCHNEIDER ELECTRIC |
| Model: | LC1E3201M7 |
Deskripsi Produk
Schneider Electric LC1E3201M7 3P, 1NC, 32A, 220V, Ac Coil, 3NO, AC-3 -<=440V Kontaktor Tvs
EasyPact TVS contactor 3 poles for motor applications up to 32A 15kW@440V.
It provides a 220V 50/60Hz AC coil, 1NC built-in auxiliary contacts, power and control connections by screw clamp terminals.
56mm width for standard operating rates up to 1800 cycles per hour.
It procures standard reliability and durability with 1 Mcycles electrical durability AC-3 and 8 Mcycles mechanical durability.
It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude.
Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
Spesifikasi
- Range EasyPact TVS
- Product/Component Type Kontaktor
- Poles description 3P
- Pole contact composition 3 NO
- [Uc] control circuit voltage 220 V AC 50/60 Hz
- [Ie] rated operational current 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
Rp 856.643
(exc. PPN)
Rp 950.874
(inc. PPN)
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 856.643 |
Kuantitas:
EA
Lead time diperlukan 30 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
