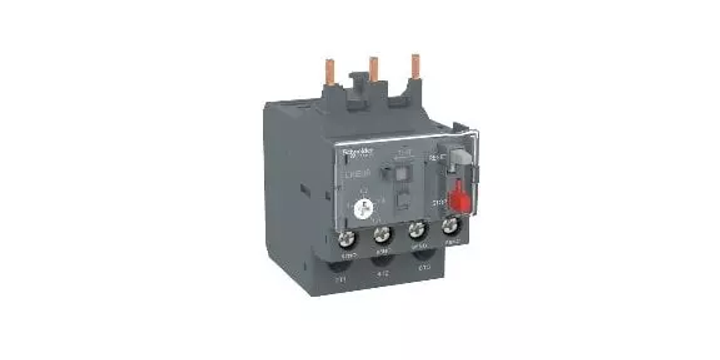

Schneider Electric LRE04 Thermal Overload Relay Easypact Tvs

Schneider Electric LRE04 Thermal Overload Relay Easypact Tvs

Merek:	SCHNEIDER ELECTRIC
Model:	LRE04

Deskripsi Produk

Schneider Electric LRE04 Thermal Overload Relay Easypact Tvs

The LRE relay is a differential thermal overload relays for use with fuses or magnetic circuit-breakers GV2 L and GV3 L.

Its thermal setting range is 0.4-0.63A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1.

It can be direct mounted on EasyPact TVS contactors with screw clamp terminals connection.

It protects unbalanced loads and motors with 0.12 - 0.18kW at 400VAC.

It provides manual or automatic reset, trip auxiliary contact and flag indicator.

Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).

Rp 407.925

(exc. PPN)

Rp 452.797

(inc. PPN)

Unit	Diskon	Harga Satuan
1	-	Rp 407.925

Kuantitas:

EA

Lead time diperlukan 30 hari kerja.

Barang akan siap dikirim dalam waktu tenggang yang ditentukan.

This item is sold by

Shop by Specification Table

You can find items with similar specifications from the table below.

Overload Relays

overload-relays-img

VDE 0660 IEC 60255-17 IEC 60947-4-1 IEC 60255-8 EN 60947-4-1, IEC 60255-17 IEC 60947-4-1 IEC 60255-8 VDE 0660 EN 60947-4-1, EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495, EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 EN 50495, EN/IEC 60947-4-1 EN/IEC 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495

[Ui] Rated Insulation Voltage

Power circuit: 690 V conforming to BS 4941 Power circuit: 690 V conforming to IEC 60947 Power circuit: 750 V conforming to VDE 0110 group C Power circuit: 600 V conforming to CSA C22.2 No 14, Power circuit: 1000 V AC conforming to IEC 60947-4, Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1, Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL, Power circuit: 1000 V conforming to IEC 60947-4-1

Ambient Air Temperature For Operation

-25 → +60 °C, -20 → +60 °C, -20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947, -20…55 °C conforming to IEC 60255-8, -20…60 °C without derating conforming to IEC 60947-4-1

Thermal Protection Adjustment Range

30…40 A, 30…38 A, 37…50 A, 95…120 A, 110…140 A
