Schneider Electric LV429677 Tmd Mccb Nsx 100H
Schneider Electric LV429677 Tmd Mccb Nsx 100H
| Merek: | SCHNEIDER ELECTRIC |
| Model: | LV429677 |
Deskripsi Produk

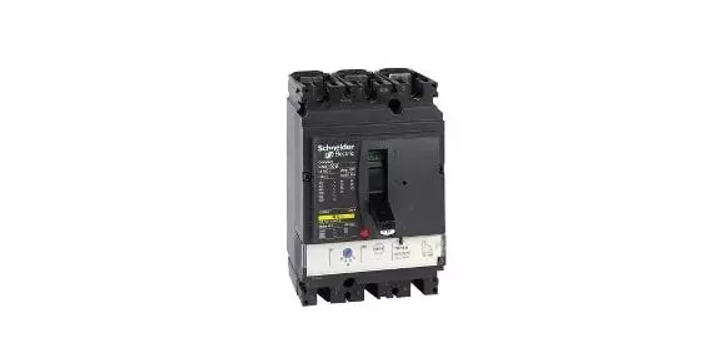

Schneider Electric LV429677 Tmd Mccb Nsx 100H
This Compact NSX100H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity.
It is an optimal choice for all standard and specific applications.
The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz.
The operational voltage is 690VAC 50/60Hz.
This product embeds a 16A rating thermal-magnetic trip unit (TMD).
TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection.
This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories.
It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
Compact NSX100H is part of Schneider Electric EcoStruxure Power architecture.
Spesifikasi
- Range ComPact NSX
- Product/Component Type MCCB
- [In] rated current 16 A at 40 °C
- [Ue] rated operational voltage 690 V AC 50/60 Hz
- Trip unit name TM-D
- Device short name 100H
- Number of poles 3P
Rp 4.020.975
(exc. PPN)
Rp 4.463.282
(inc. PPN)
| Unit | Diskon | Harga Satuan |
|---|---|---|
| 1 | - | Rp 4.020.975 |
Kuantitas:
EA
Lead time diperlukan 30 hari kerja.
Barang akan siap dikirim dalam waktu tenggang yang ditentukan.
