Schneider Electric LV430841 Tmd Mccb Nsx 160N
Schneider Electric LV430841 Tmd Mccb Nsx 160N
Deskripsi Produk

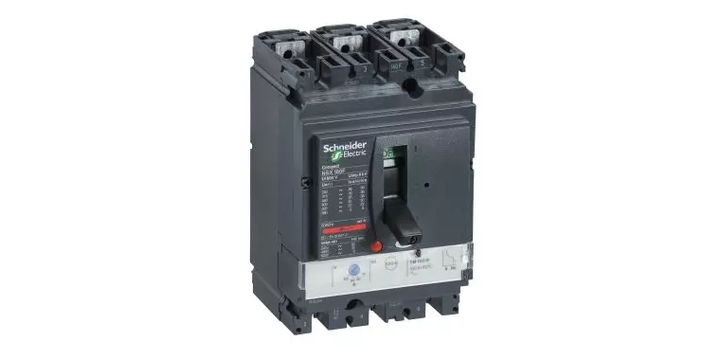

Schneider Electric LV430841 Tmd Mccb Nsx 160N

This Compact NSX160N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity.

It is an optimal choice for all standard and specific applications.

The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz.

The operational voltage is 690VAC 50/60Hz.

This product embeds a 125A rating thermal-magnetic trip unit (TMD).

TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection.

This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories.

It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Compact NSX160N is part of Schneider Electric EcoStruxure Power architecture.

Spesifikasi

  • Range ComPact NSX
  • Product/Component Type MCCB
  • [In] rated current 125 A at 40 °C
  • [Ue] rated operational voltage 690 V AC 50/60 Hz
  • Trip unit name TM-D
  • Device short name 160N
  • Number of poles 3P

Rp 4.804.191
(exc. PPN)
Rp 5.332.652
(inc. PPN)
UnitDiskonHarga Satuan
1-Rp 4.804.191
Kuantitas:
EA
