Schneider Electric LV432694 Micrologic 2.3 Mccb Nsx 400N

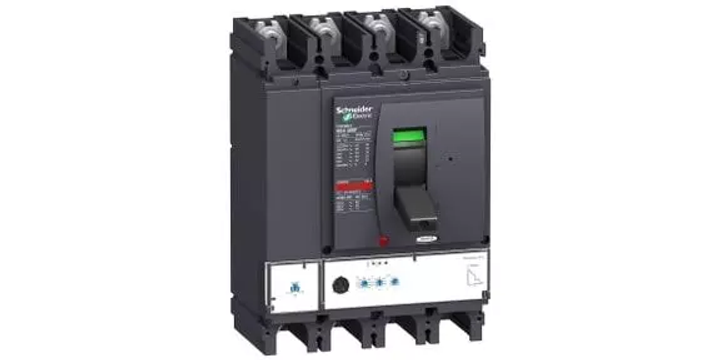

This Compact NSX400N is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity.

It is an optimal choice for all standard and specific applications.

The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz.

The operational voltage is 690VAC 50/60Hz.

This product embeds an electronic Micrologic 2.3 trip unit, with 400A rating.

Micrologic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection.

This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories.

It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Compact NSX400N is part of Schneider Electric EcoStruxure Power architecture.

Spesifikasi

• Range ComPact NSX
• Product/Component Type MCCB
• [In] rated current 400 A at 40 °C
• [Ue] rated operational voltage 690 V AC 50/60 Hz
• Trip unit name MicroLogic 2.3
• Device short name 400H
• Number of poles 4P
