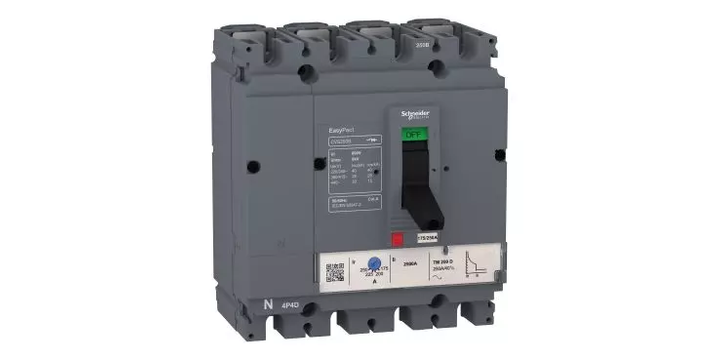

Schneider Electric LV516342 TM125D Mccb Easypact Cvs 160F

EasyPact CVS160F is a 4 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality.

It is an optimal choice for small and medium-sized buildings protection applications.

The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz.

The operational voltage is 440VAC 50/60Hz.

This product embeds a 125A rating thermal-magnetic trip unit (TMD).

TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection.

This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories.

EasyPact CVS160F is compliant with international standards (IEC 60947, CCC, EAC).

It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Spesifikasi

• Range EasyPact CVS
• Product/Component Type MCCB
• [In] rated current 125 A at 40 °C
• Poles description 4P
• Trip unit name TM-D
• Device short name 160F
• Instantaneous Pick Up Adjustment Range 1250 A
